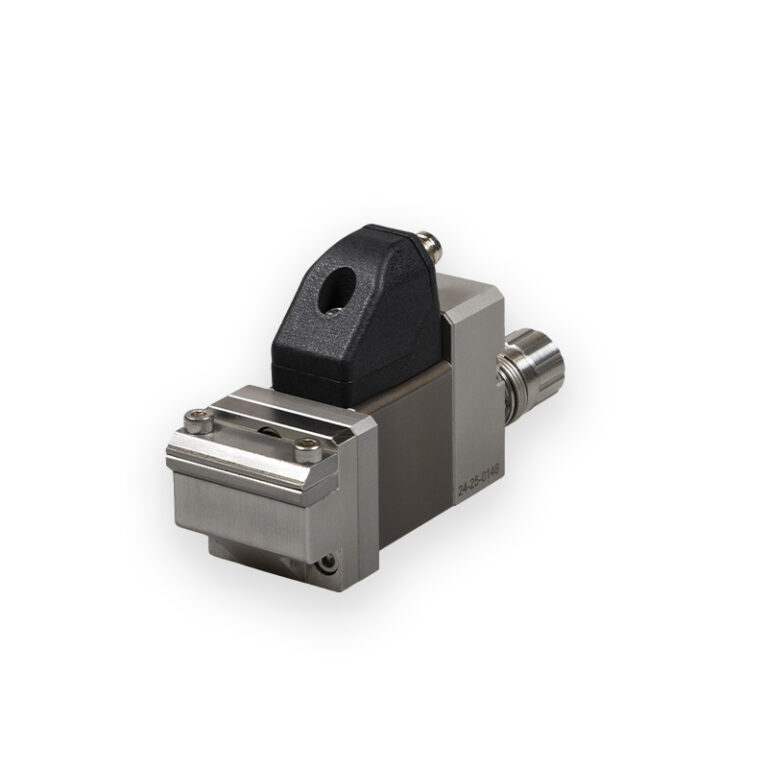

Electromagnetic Coating Valve VH2 SPL 30
Electromagnetic Coating Valve VH2 SPL 30
The VH2 SPL 30 – 30 mm – electromagnetic coating valve, derived from the VH2 model, is designed for the precise application of short product runs, ensuring fast response time and accurate dispensing control even in high-frequency cycles.
Made entirely of stainless steel, it can be easily integrated into compact spaces and high-productivity automated lines. Equipped with a coating head featuring a 25 mm effective width and micrometric adjustment, it allows precise setting of the glue quantity.
The fully electromagnetic actuation eliminates the need for compressed air, ensuring controlled coating and consistent repeatability of the electromagnetic coating valve.
TECHNICAL DATA
| Available coating widths :
|
25 mm |
| Coating plates :
|
30 mm |
| Maximum working pressure :
|
35 bar |
| Coil :
|
6 o 24 Volt |
| Weight :
|
400 g |
APPLICATION TYPES
coating
