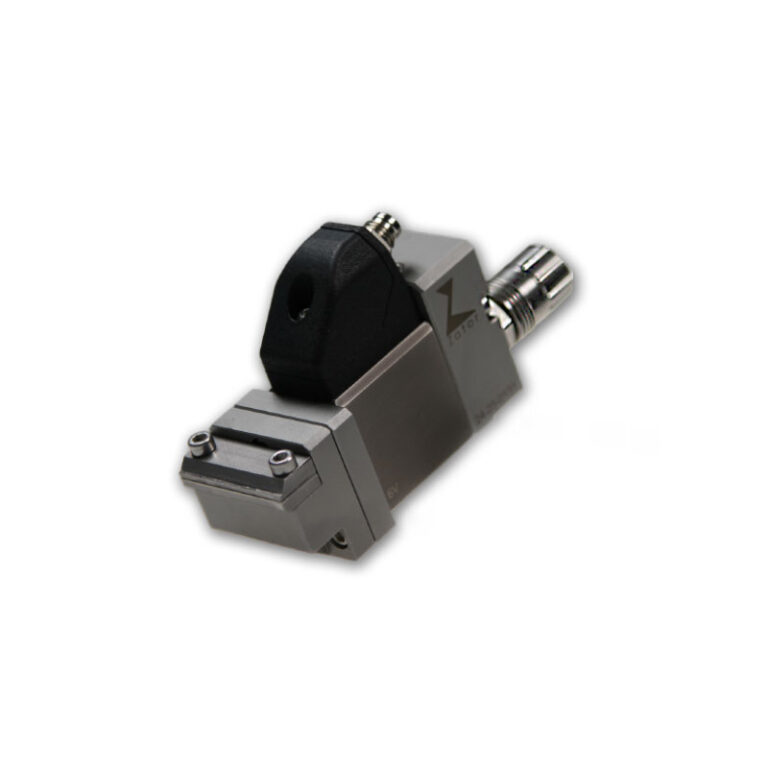

Electromagnetic Coating Valve VH2SPL
Electromagnetic Coating Valve VH2SPL
The electromagnetic coating valve is an innovative design developed from the VH2 model. It stands out for its new construction design that makes optimal use of the electromagnetic properties of the coil. The electromagnetic drive allows very short lengths of produce to be applied with precision.
Made entirely of stainless steel, it is equipped with a head with 30 mm spreading lips and a useful coating width of 25 mm. The micrometric adjustment allows the quantity of adhesive to be dispensed to be set with precision.
The valve does not require compressed air to operate, thanks to its fully electromagnetic drive.
TECHNICAL DATA
| Available coating widths :
|
25 mm |
| Maximum working pressure :
|
35 bar |
| Coil :
|
6 o 24 Volt |
| Weight :
|
400 g |
APPLICATION TYPES
coating
