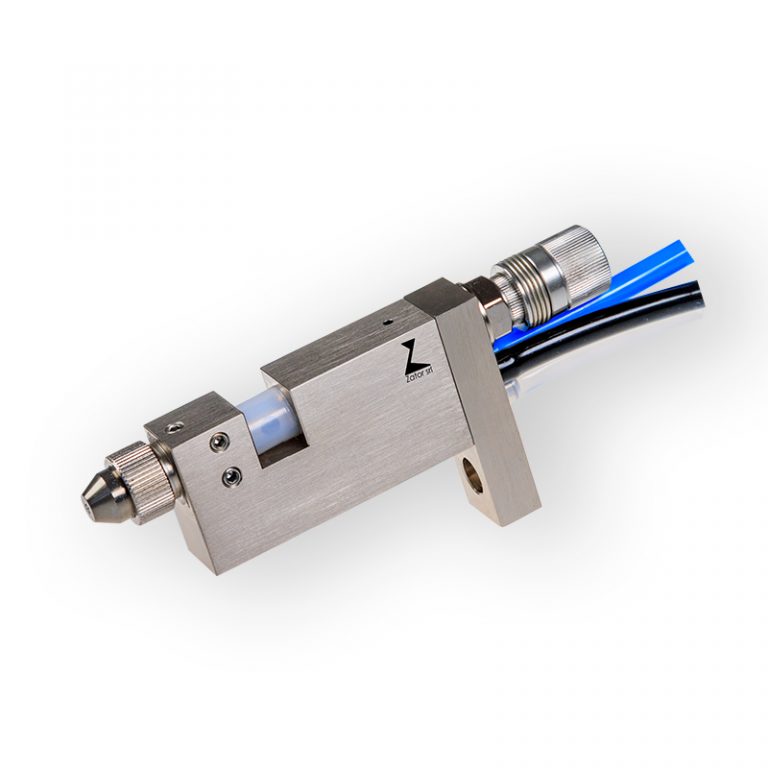

Nebulization valve MMF1
The MMF1 pneumatic spray valve is designed and manufactured to be used on different types of machines: its design and versatility make it suitable for any application requiring the use of micro-spray valves.
It is a dispenser of glues, adhesives and low-viscosity fluids. It is pneumatically controlled by two external solenoid valves, one to operate the valve and one to atomise the fluid.
Robust and very small in size, it has a stainless steel zero-cavity nozzle, a non-stick coated cap and a self-cleaning needle that guarantee long operation.
The micrometric adjustment allows the quantity of product dispensed to be regulated with extreme precision.
TECHNICAL DATA
| Available nozzle diameters :
|
from 0,3 to 1,0 mm |
| Air pressure control :
|
min. 5 bar |
| Drive type :
|
single action |
| Maximum working pressure :
|
6 bar |
| Nebulization pressure :
|
from 0,5 to 2,5 b |
| Weight :
|
300 g |
APPLICATION TYPES
Spray
