Piston pump A170001

Piston pump A170001

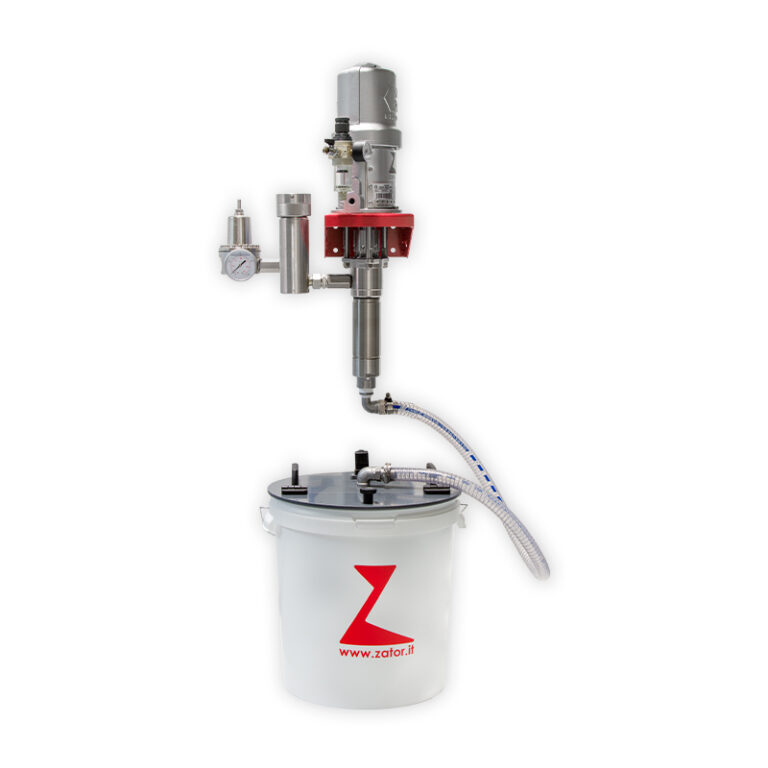

Glue feed unit with pneumatic piston pump 5:1 ratio equipped with: suction pipe with filter and bottom valve, manual stainless steel pressure regulator, stainless steel filter/pulsation dampener which has the double function to drop the pulsations of the pump and filter any possible impurities contained into the aspirated fluid.

Upon request a float level sensor (optional) can be installed to indicate the minimum fluid level into the bucket.

TECHNICAL DATA

Pump ratio : 5:1
Line air supply : max 6 bar
Working pressure : from 1 to 30 bar
Weight (tare) : 23 Kg
Bucket capacity : 28 liters
